U23D High Precision Linear Actuator for Solar Tower Heliostat Tracking System

  • 1
  • 2

Brand Name : TOMUU

Model Number : U23D

Certification : ce

Place of Origin : Guangdong, China

MOQ : 1 piece

Price : $82-123 / piece

Construction : Permanent Magnet

Protect Feature : Waterproof

Type : Gear Motor

Usage : Solar

Warranty : 3 months ~ 1 year

Rated Voltage : 24Vdc

Max. load : 55000N

Stroke : 0-800mm Customized

Speed : 0.125-1.5mm/s @ no load

Protection class : IP65

Duty cycle : 10%

Position Feedback : Hall Sensor

Contact Now

U23D High Precision Linear Actuator for Solar Tower Heliostat Tracking System

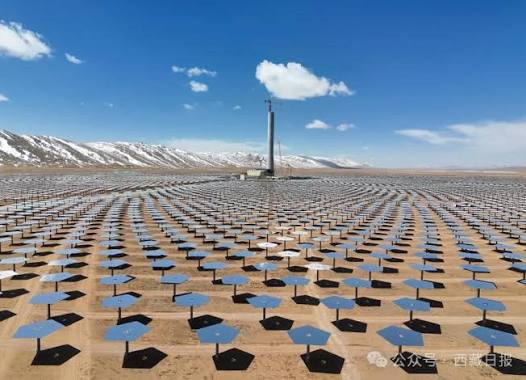

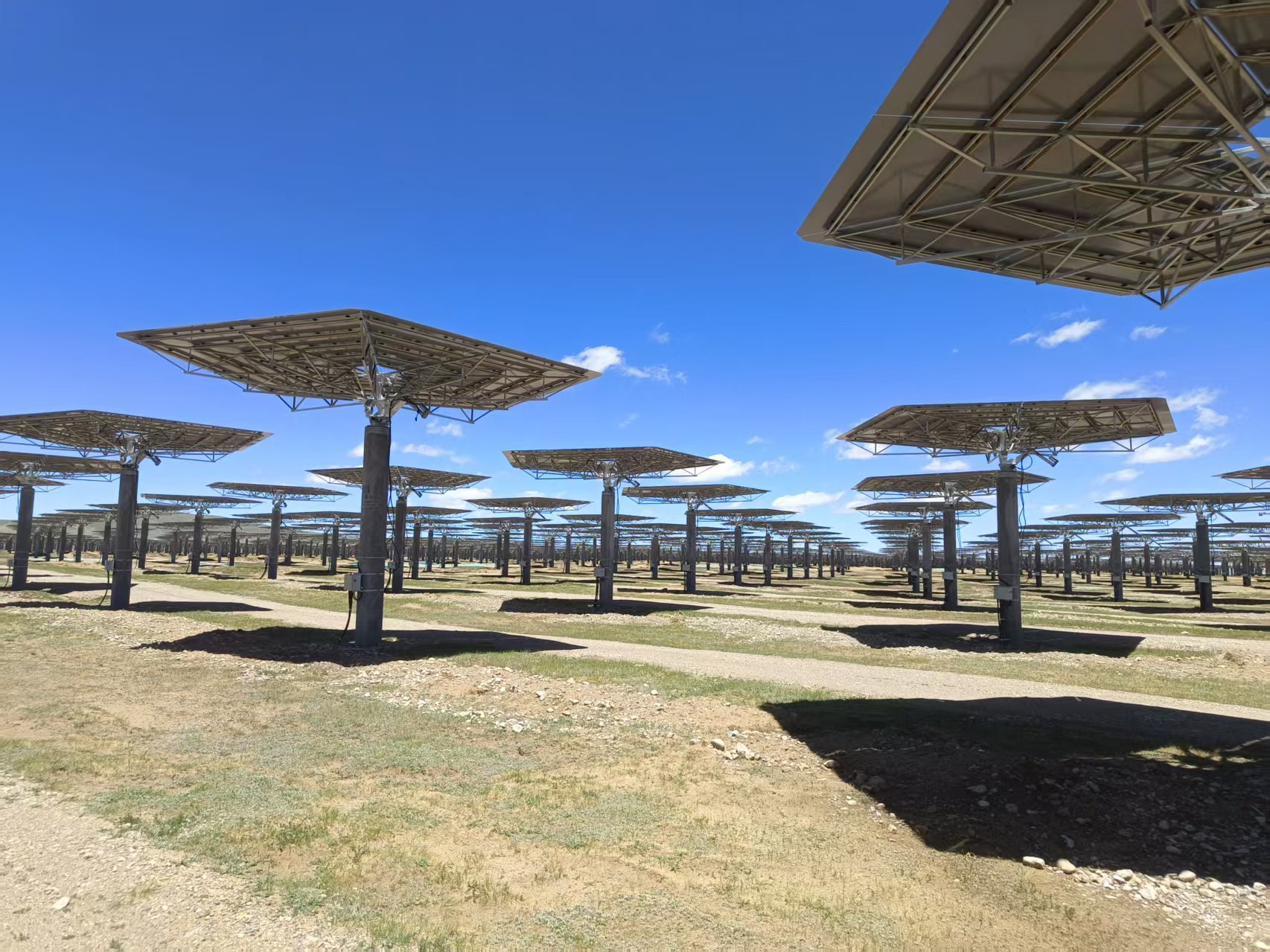

The U23D is a dedicated high-precision linear actuator specifically engineered for solar tower heliostat tracking systems. Operating on 24V DC rated voltage, it delivers exceptional performance with 40000N push-pull rated load and 55000N maximum static load capacity. With no-load speed ranging from 0.125mm/s to 1.5mm/s, this actuator ensures precise positioning for solar thermal towers, significantly improving sunlight concentration efficiency.
U23D High Precision Linear Actuator for Solar Tower Heliostat Tracking System
Technical Specifications
Parameter Specification
Voltage 24V DC
Max Load 55000N
Speed 0.125-1.5mm/s
Duty Cycle 10%
Protection Class IP65/IP66/IP67
Noise Level ≤60dB
Stroke 50-800mm
Material Aluminium Alloy
Product Dimensions
U23D High Precision Linear Actuator for Solar Tower Heliostat Tracking System
Key Advantages
  • Customized specifically for solar tower heliostat tracking applications
  • 24V DC power supply ensures stable and reliable operation
  • Exceptional load-bearing capacity with 40000N rated load and 55000N static load
  • Adjustable speed range meets diverse precision requirements
  • IP66 waterproof and dustproof rating for harsh outdoor conditions
  • Wide temperature adaptability from -40℃ to +70℃ for solar thermal projects
