U18C Manual Adjustment Actuator for Solar Tracker Systems

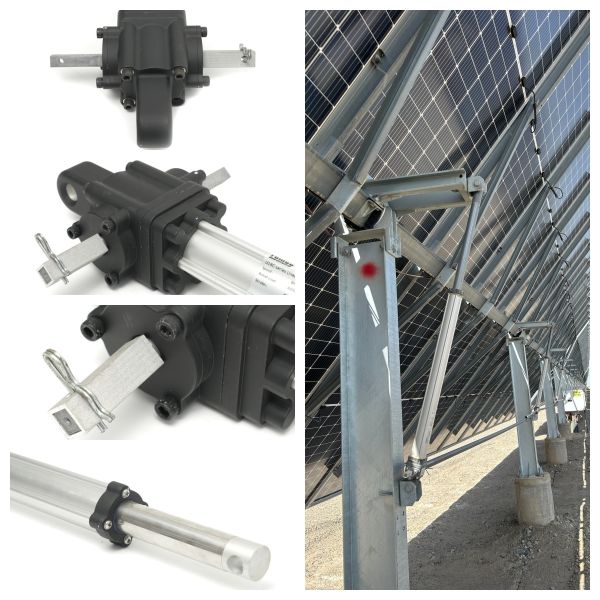

Manual Adjustment Actuator for Seasonal Solar Tracker Positioning
The TOMUU U18C is designed for solar tracking systems that require periodic manual angle adjustment rather than continuous daily movement.
It is particularly suitable for solar tracker structures where the north-south angle is adjusted several times during the year to match seasonal changes in solar elevation.
The current configuration provides a rated push and pull load of 6,000N, with maximum static load up to 30,000N when fully retracted.
Key Features
6,000N Push & Pull Load
30,000N Max. Static Load*
2.1mm/r Travel per Revolution
IP65 Outdoor Protection
*Maximum static load applies when the actuator is fully retracted.
Technical Specifications
| Parameter | Specification |
| Application | Solar Tracker Seasonal Adjustment |
| Adjustment Type | Manual |
| Rated Load | 6,000N Push & Pull |
| Limit Load | 12,000N |
| Max. Static Load | 30,000N when fully retracted |
| Travel per Revolution | 2.1mm/r ±5% |
| Torque | ≤9N·m |
| Protection | IP65 |
| Salt Spray Test | 600H |
| Ambient Temperature | -40°C to +65°C |
| Minimum Installation Dimension | Stroke + 250mm |
| Front End | Ø14.2mm Hole |
| Rear End | Ø14.2mm Hole |
Adjustment Parameters
| Code | Torque | Push Load | Pull Load | Travel per Revolution |
| A | ≤9N·m | 6,000N | 6,000N | 2.1mm/r |
Designed for Seasonal Solar Tracker Adjustment
Not every solar tracker structure requires continuous motor-driven adjustment. In some PV projects, the tracker angle only needs to be changed several times during the year according to seasonal solar conditions.
The U18C is designed for this type of low-frequency adjustment. Manual operation keeps the drive structure simple while providing sufficient load capacity for periodic tracker angle changes.
Typical Application:
Periodic north-south angle adjustment for solar tracker structures where positioning is changed only several times per year.
Suitable for Multi-Point Linkage Structures
For solar tracking systems using mechanical linkage structures, one adjustment mechanism can work with multiple structural points to change the tracker angle.
This approach is especially suitable for projects that prioritize simple mechanical design, low adjustment frequency and convenient long-term maintenance.
Installation & Dimensions

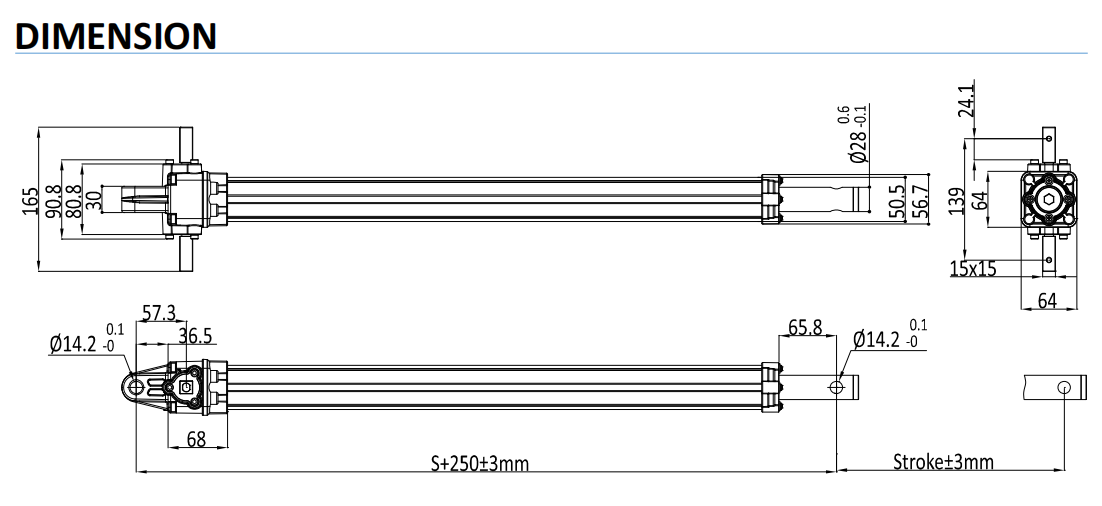

The minimum installation dimension is based on Stroke + 250mm. Both the front and rear mounting ends use Ø14.2mm holes.
Stroke and installation dimensions should be selected according to the tracker structure and the required seasonal adjustment range.
Project Applications

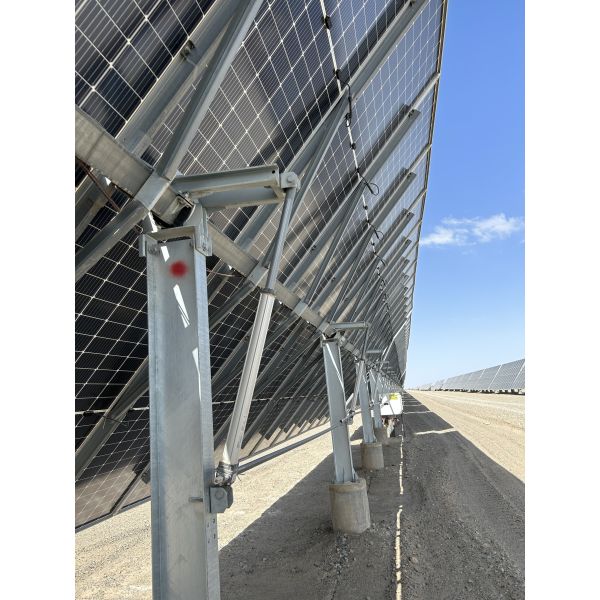

U18 series adjustment actuators are used in solar tracker structures where periodic manual adjustment and mechanical linkage are preferred.
Why TOMUU for Solar Projects?
57GW+
Cumulative Solar Project Applications Worldwide
Since 2017
Solar Actuator Experience
1,000 pcs/day
Solar Actuator Line Capacity
U18 Series Production & Packaging
U18 series adjustment actuators prepared for project delivery with protective packaging for transportation.
R&D & Testing
Load · IP · Durability · Performance
Find the Right Solar Tracker Adjustment Actuator
To evaluate the right adjustment actuator for your solar tracker system, please provide the required load, stroke, installation dimensions, adjustment range and project quantity .
You can also review our Linear Actuator Selection Guide before sending your project requirements.
