U20G Heavy Load Linear Actuator for Solar Tracker Systems

Name: U20G Heavy Load Linear Actuator for Solar Tracker Systems
Brand: TOMUU
Price: 190 USD

Quality U20G Heavy Load Linear Actuator for Solar Tracker Systems for sale

Model Number : U10S

Brand Name : TOMUU

Place of Origin : Guangdong, China

MOQ : 1

Price : $190-286

Continuous Current(A) : 8A

Efficiency : IE 1

Speed(RPM) : 1800 RPM

Commutation : Brush

Construction : Permanent Magnet

Protect Feature : Waterproof

Torque : Requests

Type : Gear Motor

Usage : solor tracker

Warranty : 3 months ~ 1 year

Max. load : 43,000N

Static load : 230KN

Stroke : 1000mm

Speed : 1mm/s @ no load

Waterproof and dustproof : IP65

Dutycycle : 10%

Position feedback : Hall

Rated Voltage : 24vdc

Color : Black

Typical Applications : Solar Tracker

Contact Now

Description:

U20G is a heavy load linear actuator designed for solar tracker systems requiring high static load capacity, outdoor reliability, and stable operation under wind load conditions.

U20G Heavy Load Linear Actuator for Solar Tracker Systems

Parameter:

Code	Voltage	Rated Load(N) Push	Rated Load(N) Pull	Rated Speed(mm/s)	Rated Curren(A)
A	24V DC	31,000	31,000	1.22	7
B	24V DC	42,000	42,000	1.0	8
C	24V DC	43,000	43,000	1.0	9
D	24V DC	24,000	24,000	0.6	5

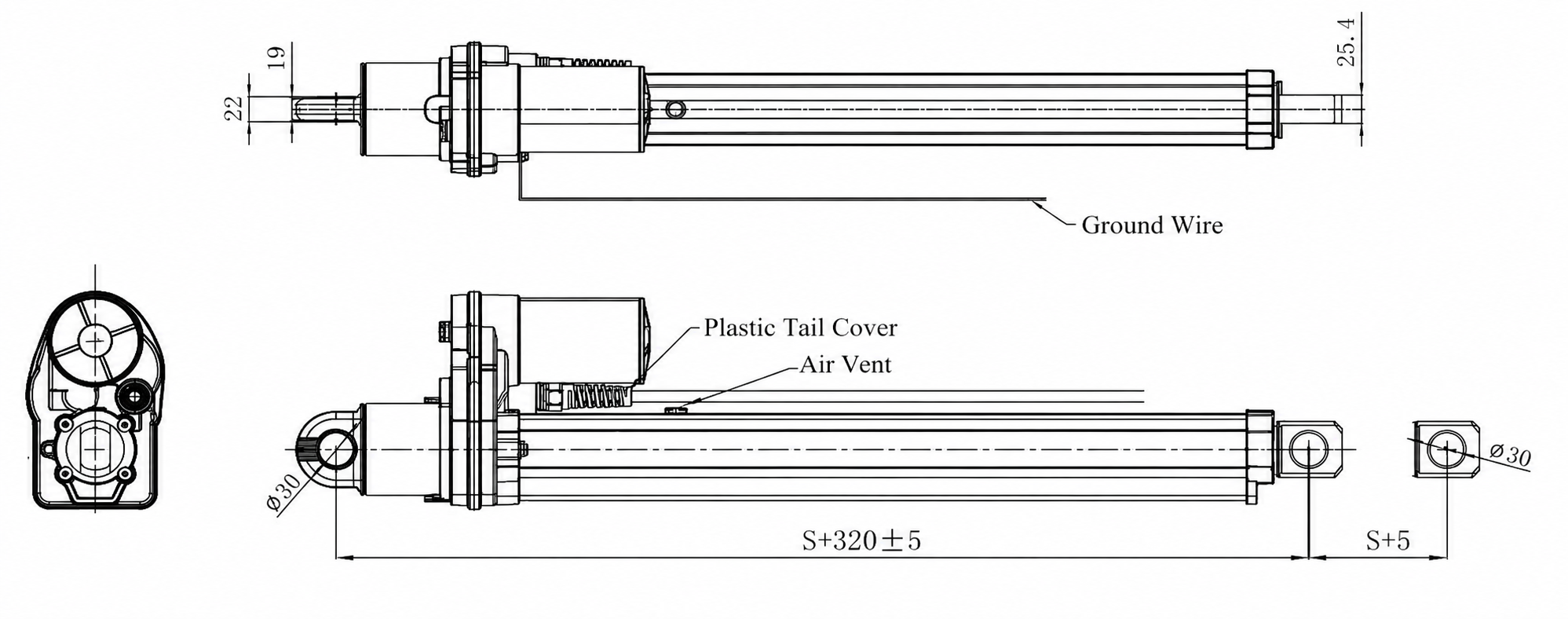

Dimension:

U20G Heavy Load Linear Actuator for Solar Tracker Systems

Engineering Notes

Designed for high static load solar tracker structures
Used in outdoor applications with wind load exposure
Long stroke installation may require additional overlap distance
Common in utility-scale tracker projects

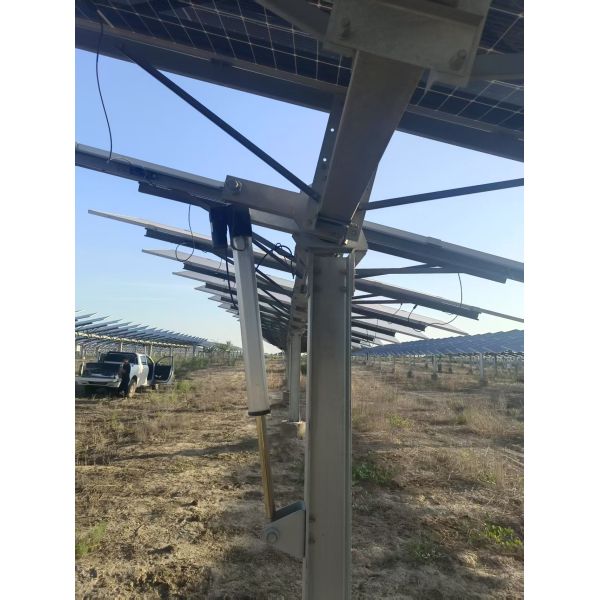

Project Application

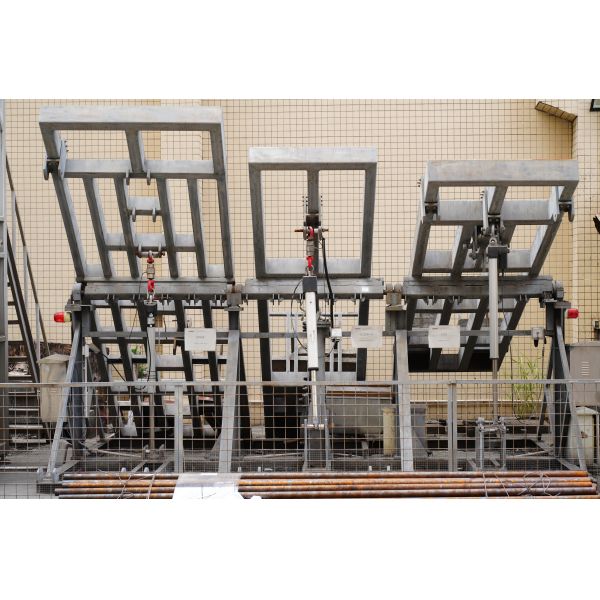

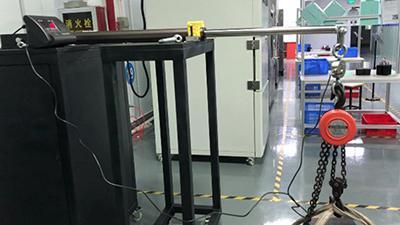

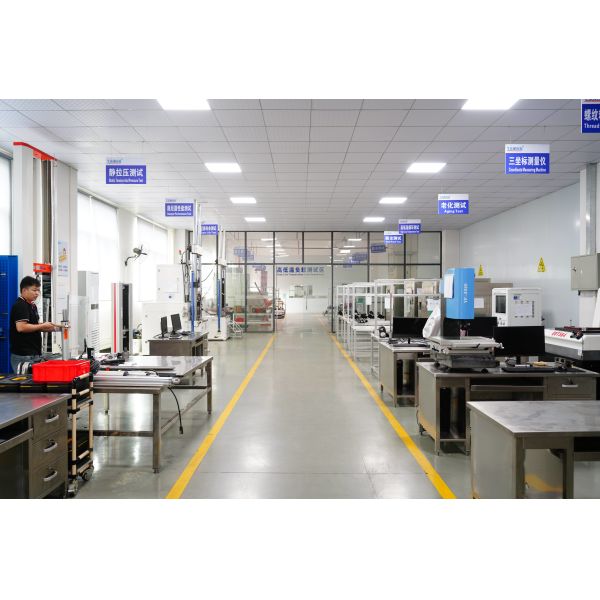

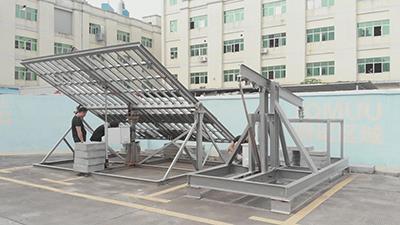

Testing for Solar Tracker Applications

Project Application
