Hall Sensor Mini Linear Actuators Intelligent Small Greenhouse Side Air Windows

  • 1
  • 2
  • 3

Model Number : U7

Usage : Intelligent Small Greenhouse Side Air Windows

Dutycycle : 10%

Continuous Current(A) : 4A

Rated voltage : Dc 24V

Speed(RPM) : 3000rpm

Protect Feature : Waterproof

Speed Rpm : 3 000 RPM

Material : Aluminum Alloy

Efficiency : IE 1

Rated Power : 50 W

Torque : Requests

Price : $32 / piece

Commutation : Brush

Type : Gear Motor

Position feedback : Hall Sensor

Stroke : 0-400mm Customized

MOQ : 2 pieces

Max. load : 50-400N

Construction : Permanent Magnet

Voltage : 12/24v dc

Place of Origin : Guangdong, China

Brand Name : TOMUU

Warranty : 1 year

Speed : 4.7-25mm/s

Protection class : IP55/IP65/IP66

Contact Now

Product Overview
Hall position feedback mini linear actuators with IP66 protection provide 400N thrust for small intelligent greenhouse side ventilation windows. These 12V/24V dual voltage actuators match agricultural control equipment requirements. The Hall sensor transmits opening percentage signals for automated temperature control, while the dust-moisture resistant handset supports installer calibration. Stroke length is customizable from 0-400mm for small greenhouse applications. TOMUU general agricultural standard patented actuators.
Technical Specifications
Parameter Specification
Voltage 12V DC / 24V DC
Max Load 400N
Speed 4.7-25mm/s
Duty Cycle 10%
Protection Class IP65/IP66/IP67
Noise Level ≤60dB
Stroke 50-400mm
Material Aluminium Alloy

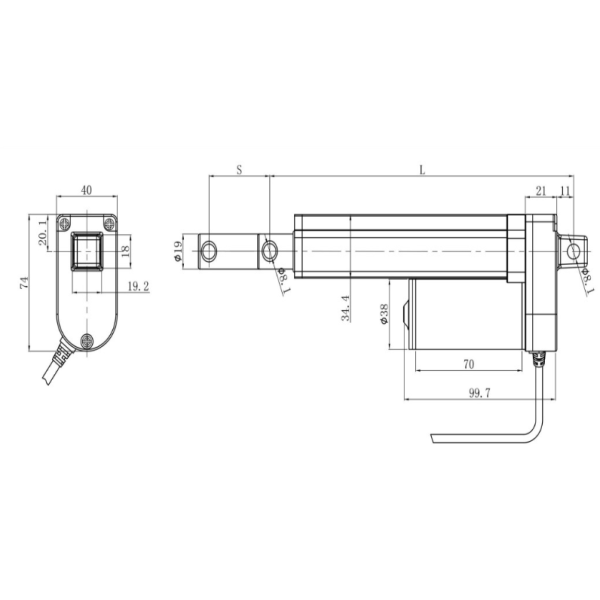

Product Dimensions
Hall Sensor Mini Linear Actuators Intelligent Small Greenhouse Side Air Windows
Key Advantages
  • Built-in Hall sensor outputs real-time window opening ratio data for integration with greenhouse temperature and humidity controllers
  • Enables fully automatic ventilation adjustment, eliminating daily manual window operation
  • IP66 dual dust and water protection adapts to ordinary greenhouse environments with moderate humidity and floating fertilizer dust
  • Reduces equipment maintenance frequency and extends service life
  • Simple wired handset allows installers to test full window travel range during greenhouse construction
  • Customizable short stroke and light mounting lugs designed specifically for small household greenhouses
  • Low energy consumption reduces daily farm power bills
  • Also suitable for livestock farm ventilation dampers
